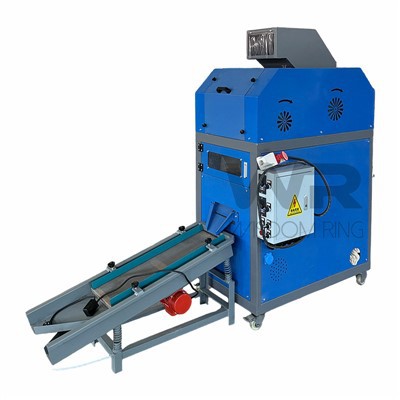

Product Overview
The wire cable granulator machine is a robust, integrated processing solution engineered for medium to large-scale recycling operations demanding high throughput and exceptional material purity. Combining heavy-duty crushing, magnetic separation, and precision air-vibration sorting technologies, the W-Q10 efficiently transforms mixed scrap cables into clean, high-value copper/aluminum granules and separated plastics-all in a single, continuous, and automated workflow.
Technical Specifications
|
Specification |
Details |
|
Model |
W-Q10 |
|
Machine Footprint |
1350 × 1600 × 1720 mm (L×W×H) |
|
Processing Capacity |
80–150 kg/h |
|
Maximum Cable Diameter |
Up to 30 mm |
|
Total Installed Power |
8.88 kW |
|
Separation Purity |
Up to 99.99% |
|
Net Weight |
952 kg |
|
Recommended Voltage |
380V/50Hz (customizable upon request) |
System Highlights
1.High-Capacity, Continuous Processing
2.Multi-Stage Separation Technology
3.Heavy-Duty Construction for Demanding Environments
4.Automated & Operator-Friendly Workflow
5.Optimized for Mixed & Complex Cable Streams
6.High Recovery Value & Low Operational Waste

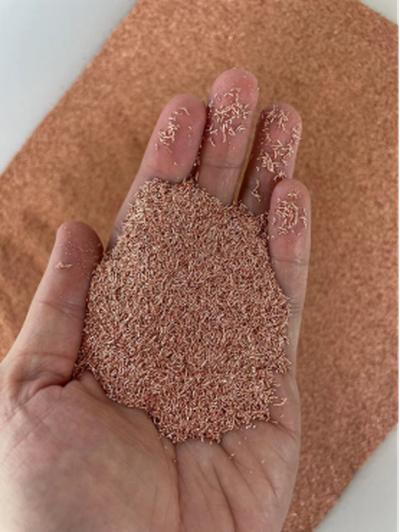

Wire cable granulator machine Precise sorting maximizes the yield and purity of both metal and plastic outputs, enhancing the resale value of recovered materials and reducing process loss.

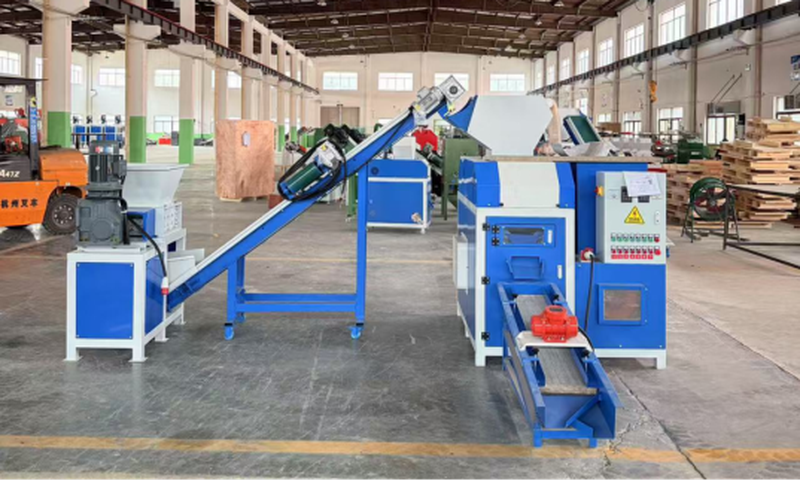

How the W-Q10 Works
Pre-Shredding & Ferrous Removal: Cables are initially shredded, and a magnetic conveyor removes any ferrous materials.
Granulation: Pre-processed material is fed into the main crusher and reduced to uniform granules.
Separation: Granules pass through a vibrating air separator, where copper/aluminum is cleanly separated from plastic.
Collection & Dust Management: Separated metals and plastics are discharged via dedicated outlets while an integrated dust control system maintains air quality.
Key Components
|
Component |
Quantity |
Function |
|
Pre-Shredder Unit |
1 set |
Reduces bulk cables for easier processing |
|
Main Granulator Crusher |
1 set |
Further crushes material into fine, separable granules |
|
Magnetic Conveyor |
1 set |
Removes ferrous impurities during material transfer |
|
Vibration Air Separator |
1 set |
Separates metal from plastic using vibration and controlled airflow |
|
Small Vibration Tables |
2 units |
Enhance final separation purity at copper and plastic outlets |
|
Central Control Panel |
1 unit |
Allows integrated operation, monitoring, and system adjustments |
Included Spare Parts & Screens
|
Item |
Specification |
Quantity |
Purpose |
|
Blade Set |
SKD-11 steel |
1 set (10 rotary + 2 fixed) |
Pre-installed for immediate operation |
|
Crusher Sieves |
3 mm / 4 mm / 5 mm apertures |
3 pieces |
Interchangeable for different granulation sizes |
|
Main Separator Screens |
200 mesh / 250 mesh |
2 pieces |
Fine separation of materials |
|
Vibration Table Screens |
14 / 16 / 18 mesh |
3 pieces |
Optimized for final purification on copper and plastic sides |
|
Tool Kit |
Comprehensive set |
1 set |
Includes wrenches, Allen keys, screwdrivers, brushes, and more |
Designed For
1.Medium to Large Scrap Recycling Facilities
2.Dedicated Non-Ferrous Metal Recovery Plants
3.Cable Manufacturing & Large Industrial Complexes
4.Regional E-Waste Processing Centers
5.Growing Recyclers Scaling Up Operations
Support & Customization
Each wire cable granulator machine is backed by technical support, optional configuration adjustments, and training to ensure seamless integration into your workflow. We also offer extended warranties and responsive service plans.
The W-Q10 Granulator represents a professional, high-efficiency solution for serious recyclers who demand reliability, purity, and volume. To learn more about specifications, delivery options, or to request a customized quote, please contact our sales team.
