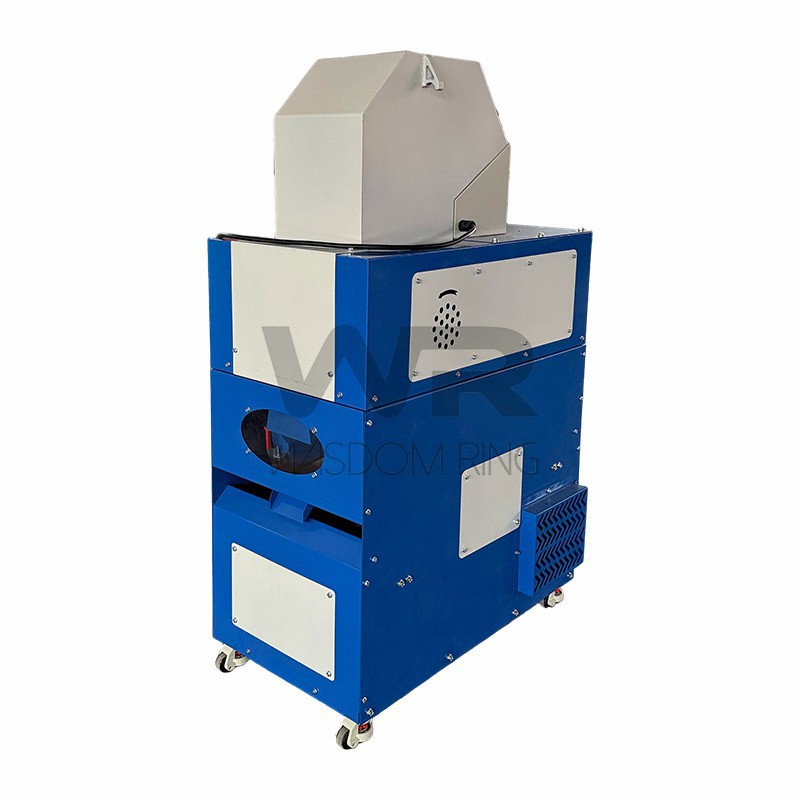

Small Copper Wire Granulator



The Small Copper Wire Granulator is a compact, all-in-one recycling system designed to transform various types of scrap cables into high-purity copper granules and clean plastic granules. Combining crushing, conveying, air separation, and vibration separation into a single, streamlined production line, the W-01 delivers stable performance, precise material separation, and efficient operation-all within a space-saving footprint.

Ideal for small to medium-sized recycling workshops, start-up recycling businesses, and operations seeking high copper purity with moderate output, the W-01 offers an accessible and reliable solution for turning scrap wire into valuable, separated commodities.







The W-01 is suitable for processing:
(1)Automotive cables
(2)Communication cables
(3)Household and miscellaneous wires
(4)Mixed scrap cables



Cable size range:
1)0.1-30 mm overall diameter
2)Best performance for single-core wires: 0.2-0.3 mm







The W-01 operates through a fully integrated process:

• Scrap cables are fed into the granulator crusher, where they are crushed into small particles
• The mixed copper and plastic granules are transferred via the internal conveyor
• An air-flow vibration separator separates copper and plastic based on density differences
• Final outputs are high-purity copper granules and clean plastic granules
• The copper separation rate can reach up to 99.99%.







1.Integrated All-in-One System

Combines crushing, conveying, air separation, and vibrating separation in one compact unit, eliminating the need for multiple standalone machines and simplifying the overall recycling process.



2.High Separation Accuracy

Utilizes advanced airflow and vibration technology to achieve clean and efficient separation of copper granules from plastic insulation, resulting in high-purity output ready for resale or further processing.



3.Stable & Efficient Performance

Built with a robust motor, durable blades, and a reliable separation system to ensure consistent operation, high throughput, and minimal downtime-even with varied cable types and sizes.



4.Easy to Operate & Maintain

Designed with user-friendly controls, clear access points for maintenance, and straightforward adjustment mechanisms, reducing the need for specialized technical skills and supporting smooth daily operation.





Item	Specification
Model	W-01 Small Copper Wire Granulator
Wire Diameter Range	0.1 – 30 mm
Recommended Single Core Size	0.2 – 0.3 mm
Total Power	4.58 kW
Processing Capacity	40 – 50 kg/h
Copper Separation Rate	≥ 99.99%
Net Weight	340 kg
Machine Dimensions	1000 × 600 × 1664 mm
Structure	Integrated copper granulation line
Operation Type	Automatic





Component	Power	Quantity	Function
Granulator Crusher	3.3 kW	1 Unit	Crushing raw cables into granules
Vibration Separator	0.08 kW	1 Unit	Separating copper and plastic granules
Air Blower + Dust Fan	0.75 kW + 0.37 kW	1 Set	Air separation & dust collection
Electric Control Panel	-	1 Unit	Controls all machine operations







Small to Medium Recycling Workshops: Provides a complete, compact solution for processing mixed scrap cables into separated copper and plastic materials.

Electrical & Cable Manufacturers: Enables in-house recycling of production scrap, trim, and defective wires to recover valuable copper efficiently.

Local Scrap Collection Points: Allows smaller operators to add value to collected cables by upgrading them into clean, separated materials before selling to larger processors.
