Product Introduction
The copper granulation machine is a high-capacity industrial solution designed for large-scale scrap cable recycling, with an output of 1200-1800kg/h. Advanced crushing, airflow separation, and vibration sorting technology, combined with secondary refining, purity up to 99.99%. Magnetic separator and dust collection system effectively removes iron impurities and maintains a clean working environment.
Technical Specifications
|
Model Name |
W-S55 |
|
Power |
94.8KW |
|
Weight |
6200kgs |
|
Dimensions |
L12*W4.3*H3(m) |
|
Processing Capacity |
1200-1800KG/H |
|
Processing Range |
For cable diameter 30MM |
Product Structure
1)1 piece pre shredder
Pre-processe scrap cables for uniform granulation and maximum copper liberation.
2)2 pieces granulator crusher
Uniform granulation for maximum copper release
3)2 pieces Airflow Separation system
Adjustable airflow for accurate copper–plastic separation
4)4 pieces Small Vibrating Tables
High-purity copper output, minimal plastic loss
5)2 pieces Fully Automated Conveyor belt
Continuous operation, reduced labor cost
6)2 pieces Dust Collection Systems
Clean, safe operation meeting EU & NA standards
7)2 pieces Double-Layer Magnetic Separators
Removes iron, protects equipment, improves copper quality
Cable Granulator Recycling Process
1.Pre-Shredding
Scrap cables are first shredded into pieces of approximately 5 cm for efficient downstream processing.
2.Granulator Crushing
Pre-shredded cables are automatically conveyed into the copper granulation machine for smooth and continuous operation.
3 .Copper–Plastic Separation
Airflow and vibration separation systems accurately separate copper from plastic.
Scrap Cable Recycling Materials
The copper granulation machine handles a broad range of input materials, including automotive mixed wiring, building cables, square cables, and fine (hair) wires. Equipped with high-efficiency crushing units and precision separation technology, the machine ensures consistent output quality.
Final Output

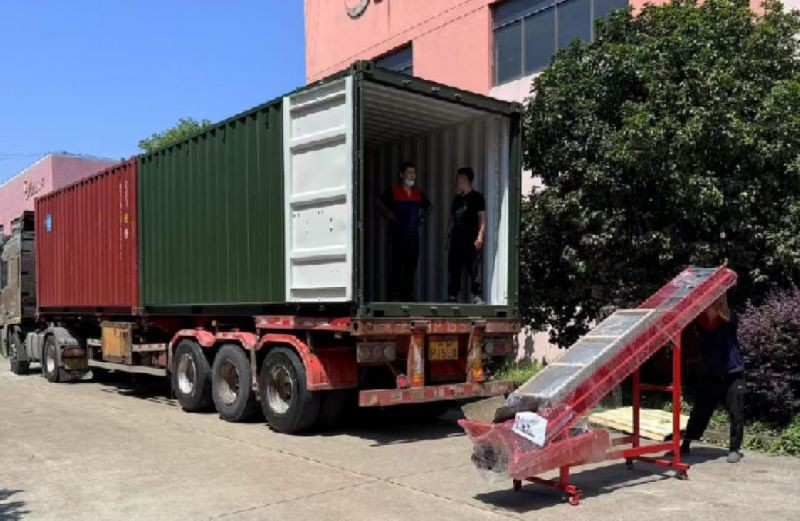

Machinery Packing & Shipping Solutions
1.Export-Standard Machine Packing
Plastic wrapping + waterproof plywood case
2.International Shipping Ready
Suitable for sea, land, and container transport
3.Flexible Delivery Options
Factory pickup, port delivery, or door-to-door
Frequently Asked Questions
Q1: Is the machine fully automatic?
A:Yes. The system is equipped with an independent PLC control cabinet, enabling automatic operation, stable performance, and easy monitoring.
Q2: Does the machine remove iron impurities?
A:Yes. A magnetic separation system is integrated to remove iron and protect downstream equipment.
Q3: How is dust controlled during operation?
A:The copper granulation machine includes multiple dust collection systems, ensuring clean, safe operation compliant with EU and North American standards.
Q4: Is the machine easy to install and operate?
A:Yes. The system is designed for simple installation, clear operation logic, and low labor requirements.
Q5: Do you provide technical support and after-sales service?
A:Yes. We offer professional technical support, installation guidance, and long-term after-sales service.
