Product Overview

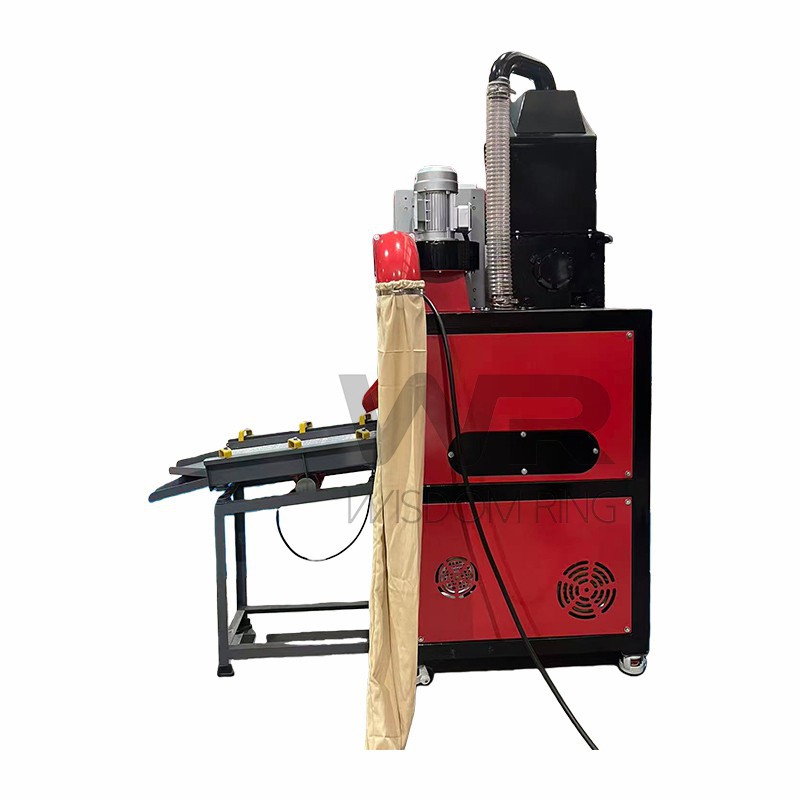

The copper cable granulator separator is purpose-built for startups, small workshops, and operations where space is at a premium. Designed to process scrap copper and aluminum cables up to 25 mm in diameter, this highly efficient system transforms insulated wires into clean, separated metal and plastic granules-all within a remarkably small footprint.
Combining ease of use, low energy consumption, and consistent separation performance, the W-C05M is the ideal choice for those beginning their recycling journey or adding scalable processing capacity to a constrained workspace.
Technical Specifications
|
Specification |
Details |
|
Model |
W-C05M |
|
Dimensions (L×W×H) |
98 × 98 × 199 cm |
|
Processing Capacity |
40–60 kg/h |
|
Cable Diameter Range |
Up to 25 mm |
|
Total Power Consumption |
5.22 kW |
|
Separation Efficiency |
> 99.99% |
|
Dust Removal Rate |
> 99.99% |
|
Net Weight |
330 kg |
|
Power Supply |
Configurable (standard 380V/50Hz) |
Key Features & Benefits
1.Ultra-Compact, Space-Smart Design
2.Plug-and-Play Simplicity
3.Efficient Metal-Plastic Separation
copper cable granulator separator Integrated vibration and airflow systems ensure high-purity metal recovery (≥99%) and clean plastic output for maximum scrap value.
4.Low Energy Consumption
5. Handles Diverse Cable Types
6.Durable & Low-Maintenance
2.Plug-and-Play Simplicity
3.Efficient Metal-Plastic Separation
copper cable granulator separator Integrated vibration and airflow systems ensure high-purity metal recovery (≥99%) and clean plastic output for maximum scrap value.
4.Low Energy Consumption
5. Handles Diverse Cable Types
6.Durable & Low-Maintenance
Suitable Materials
- Thin copper and aluminum wires
- Communication and data cables
- Automotive wiring harness segments
- Household appliance cables (up to 25 mm)
Processing Notes:
1)To maintain machine performance and longevity, do not process:
2)Cables with attached plugs, connectors, or terminals
3)Cables containing steel or iron components
4)Tapes, fabrics, or heavily insulated wires
5)Oil-soaked or contaminated cables
Contact our team if your materials require special handling or pre-processing.
How It Operates
Granulation: Cables are fed into the crusher and shredded into fine mixed granules.
Separation: Granules are conveyed to a vibrating air table, where metal and plastic are effectively separated.
Output: Clean copper/aluminum is collected from one discharge point; plastic granules from another.
Dust Control: Integrated fan captures airborne particles, supporting a cleaner and safer workspace.
System Components
|
Component |
Power |
Quantity |
Function |
|
Granulator Crusher |
4 kW |
1 set |
Reduces cables into small, processable granules |
|
Vibration Separator |
0.12 kW |
1 set |
Uses vibration and airflow to separate metal from plastic |
|
Air Blower |
0.55 kW |
1 set |
Enhances material differentiation during separation |
|
Dust Extraction Fan |
0.55 kW |
1 set |
Removes and contains dust for improved air quality |
|
Control Panel |
– |
1 set |
Centralized interface for operation monitoring and control |
Included Accessories
|
Item |
Specification |
Quantity |
Notes |
|
Blade Set |
D2 steel |
1 set |
5 blades, pre-installed |
|
Crusher Sieves |
3 mm aperture |
2 pieces |
One installed, one spare |
|
Separator Screens |
200 mesh |
2 pieces |
Fine screen for high purity; one installed, one spare |
|
Tool Kit |
Comprehensive |
1 set |
Includes wrenches, Allen keys, brushes, and more |
Perfect For
The copper cable granulator separator offers an accessible, compact, and efficient path to transforming scrap cable into valuable separated materials. Whether you're starting out or optimizing a small-scale operation, this machine provides professional performance in a minimal footprint. For more information or to discuss your specific needs, reach out to our team today.
