Product Introduction
W-S30 Copper Cable Recycling Machine Features Capacity Of 400–500 Kg/H And The PLC Control Cabinet For Stable, Easy Operation. With Fully Automatic Operation, Up To 99.9% Copper-Plastic Separation, And An Integrated Dust Collection System, It Delivers High-Purity Copper Granules With Efficient And Eco-Friendly Performance.
Technical Specifications
|
Model Name |
W-S30 |
|
Power |
42.19kW |
|
Weight |
3450kgs |
|
Dimensions |
L3700*W1900*H2200(mm) |
|
Processing Capacity |
400-500KG/H |
|
Processing Range |
For cable diameter 30MM |

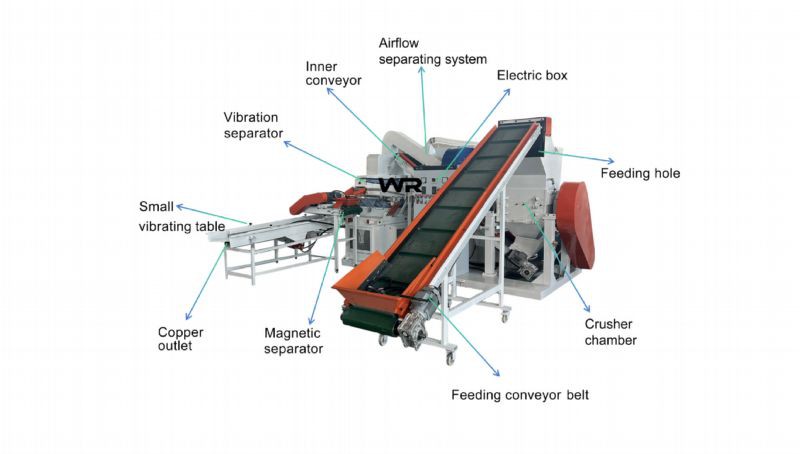

Product Structure and Introduction
1.Automatic Conveyor Feeding Belt
W-S30 copper cable recycling machine equip with conveyor belt, continuous feeding, improving efficiency and reducing labor.
2. PLC Electrical Control Cabinet
PLC electrical control cabinet, allowing centralized control, stable operation
3. Crushing & Separation
Advanced crushing technology combined with air-flow and vibration separation produces clean copper and plastic granules with minimal material loss.
4. Small vibrating table
Vibrating table at the copper and plastic outlets enhances separation, copper and plastic purity up to 99.99%.
5. Magnetic Separation
Magnetic separator at the copper outlet removes iron, protect the machine and improve copper purity
Scrap Cable Recycling Workflow
Scrap cables are crushed, granulated, and then separated by air and vibration systems to produce high-pure copper and plastic granules .
Scrap Cable Recycling Materials
The copper cable recycling machine is suitable for recycling a wide variety of scrap cables, including automotive mixed wires, building cables, square cables, and fine (hair) wires. With efficient crushing and precise separation technology, the machine delivers high-purity copper granules and clean plastic output.
Final Copper And Plastic Output
Machinery Packing & Safe Shipping Services
Plastic film inner wrapping and waterproof plywood outer packaging
Prevents moisture, dust, and transport damage
Multiple delivery options available: factory pickup, port delivery, air transport and door-to-door service
Frequently Asked Questions
Q1: What types scrap cables can recycle by the W-S30
A:The copper cable recycling machine can recycle wide range waste cables, including automotive mixed wires,square cables, and industrial scrap cables with 30MM dianmeter
Q2: Can the W-S30 ensure high copper purity?
A:Yes. Equipped with advanced crushing, air separation, and magnetic separation systems, delivering high-purity copper granules
Q3: What warranty and after-sales support do you provide?
A:We provide a one-year warranty and lifetime technical support. Spare parts are always available, ensuring long-term, worry-free operation and fast service response.
Q4: Can you accept factory visits?
A: Yes, factory visits are welcome. Please contact us in advance to schedule an appointment.
