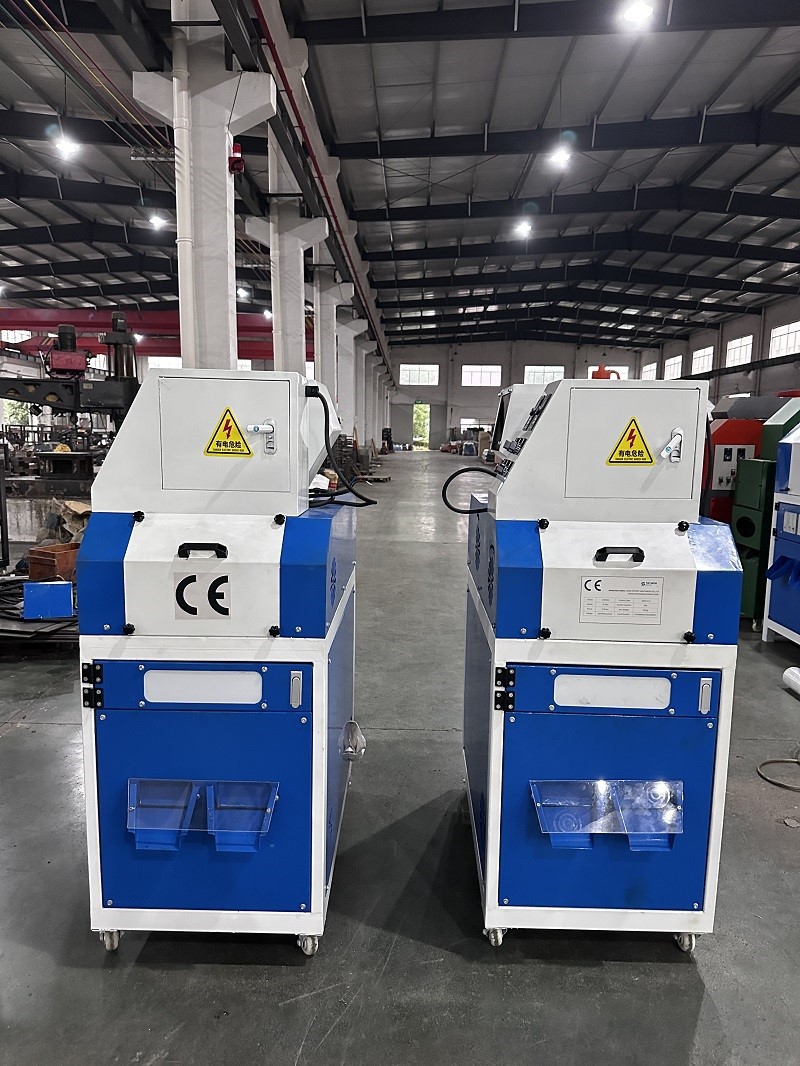

Industrial Cable Granulator



The Industrial Cable Granulator is a smart, integrated recycling system engineered specifically for small to medium-scale recycling operations. It efficiently processes scrap copper and aluminum cables by crushing them into fine granules and then accurately separating the pure metal from the plastic insulation-all within a single, compact unit.

Designed for reliability, energy efficiency, and high material recovery, the W-C02 enables users to achieve outstanding copper purity and maximize the value of their scrap, making it the go-to choice for businesses that require consistent performance with moderate throughput.







The W-C02 can process:

• Scrap copper wires
• Scrap aluminum wires
• Automotive cables
• Communication and household wires



Processing wire diameter: 0.1 – 30 mm



Notes before feeding:

• Remove electric heads/connectors
• Avoid cables containing iron or steel layers
• Avoid oily cables, taped cables, or special composite materials

If your material differs from the above, please contact us for a customized solution.







Scrap cables are fed into the granulator crusher, where they are crushed into small particles;

Mixed copper/aluminum and plastic granules are transferred to the air-flow separation system;

A vibration separator further separates metal and plastic based on density;

Dust is collected by the dust deduction air fan.

Final output: clean copper/aluminum granules and pure plastic granules

Industrial Cable Granulator separation efficiency can reach over 99.99%.







1.High-Purity Metal Recovery

Advanced airflow and vibration technology ensures precise separation, producing clean copper or aluminum granules with purity rates typically exceeding 99%.



2.Energy-Efficient Operation

Optimized motor and system design reduces power consumption while maintaining stable and productive performance, helping to lower operating costs.



3.Compact & Space-Saving Design

Ideal for workshops with limited floor space. The all-in-one layout simplifies installation and operation without sacrificing processing capability.



4.User-Friendly & Low Maintenance

Clear controls, easy-access panels, and durable components reduce daily upkeep and allow quick adjustments or part replacements, keeping downtime to a minimum.





Item	Specification
Model	W-C02 Industrial Cable Granulator
Processing Capacity	60 – 80 kg/h
Wire Diameter Range	0.1 – 30 mm
Total Power	4.58 kW
Separation Efficiency	≥ 99.99%
Machine Dimensions	1000 × 580 × 1550 mm
Net / Gross Weight	367 / 448 kg
Applicable Materials	Copper & aluminum cables
Operation Type	Automatic





Component	Power	Quantity	Function
Granulator (Crusher)	3.0 kW	1 Set	Crushing raw cables into granules
Vibration Separator	0.05 kW	1 Set	Separating metal and plastic granules
Air Blower	0.76 kW	1 Set	Air separation of plastic
Dust Deduction Fan	0.77 kW	1 Set	Dust collection
Electric Control Panel	-	1 Set	Controls all machine operations





Item	Specification	Quantity	Remark
Blades	D2 material	1 Set	2 fixed + 3 rotary blades
Crusher Sieves	3 mm / 4 mm	2 Pieces	Extra sieves included
Separator Screens	18 mesh / 22 mesh	2 Pieces	Installed & spare
Tool Box	Standard tools	1 Set	For installation & maintenance





Metal Recovery Start-ups & Entrepreneurs: Offers an affordable entry into automated cable recycling with a manageable footprint and operational complexity.

Electrical Contractors & Demolition Firms:Turns on-site or collected cable scrap into high-value separated materials, avoiding the cost of outsourcing processing.

E-Waste & Appliance Recyclers: Efficiently recovers copper from wires found in discarded electronics, machinery, and household appliances.

Cable Manufacturing Plants: Recycles production off-cuts, defective wires, and trim materials in-house to reclaim valuable metal content.
