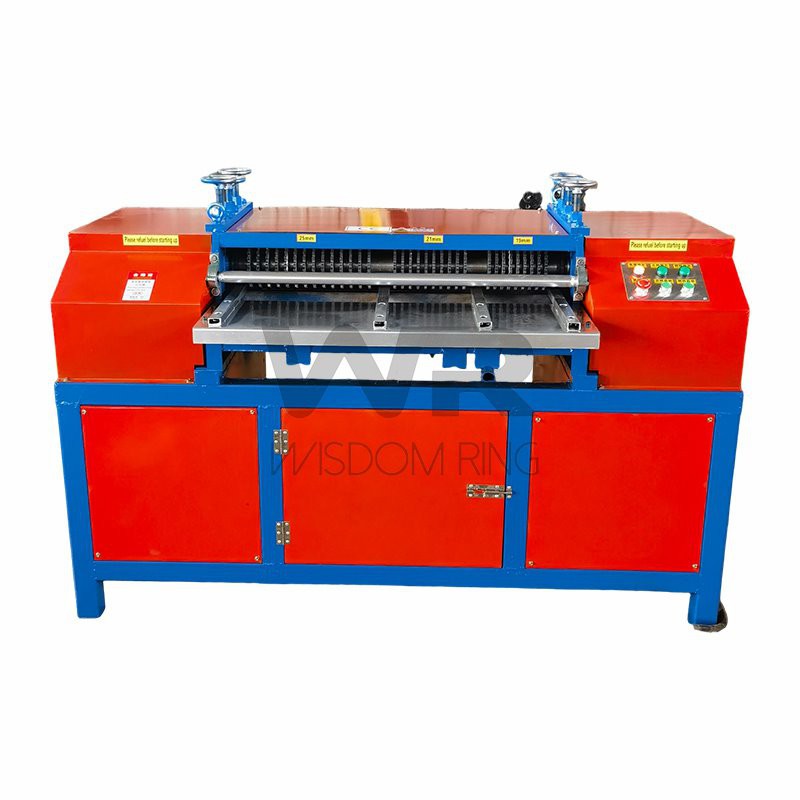

Scrap Radiator Recycling Machine

The Scrap Radiator Recycling Machine is a specialized, automated system designed for efficient processing of end-of-life radiators from automotive and HVAC systems. This advanced machine streamlines the labor-intensive process of separating valuable copper tubing from aluminum cooling fins, transforming mixed scrap into high-purity, separately collected metals ready for resale or smelting.

By automating the cutting, crushing, and separation processes, the Scrap Radiator Recycling Machine dramatically increases throughput while reducing manual labor and operational costs. Ideal for metal recycling yards, specialized dismantlers, and radiator repair shops, this machine delivers a rapid return on investment through efficient material recovery and improved workplace safety. Engineered with European operational standards in mind, it combines robust performance with CE-compliant safety features.

1.Automated Processing Line
Benefit: Transforms manual, time-intensive dismantling into a continuous, efficient operation. From feeding to final separation, the system minimizes labor requirements while maximizing daily output.
Feature: Integrated system typically includes a conveyor, multi-blade cutting unit, crushing mechanism, and vibration separation table in one cohesive line.
2.High-Precision Cutting System
Benefit: Cleanly cuts radiator ends and sections the core, preparing the material for effective separation without excessive damage to the copper tubes.
Feature: Equipped with durable, adjustable cutting blades or rotary shears designed specifically for the mixed metal structure of radiators.
3.Efficient Copper-Aluminum Separation
Benefit: Achieves high-purity separation, resulting in clean copper fragments and aluminum chips that command premium market prices. Significantly increases the value of the input material.
Feature: Utilizes a combination of crushing, shredding, and gravity-based vibration sorting to liberate and separate the two metals.
4.Robust Construction for Demanding Materials
Benefit: Scrap Radiator Recycling Machine Built to withstand the abrasive and tough nature of processed radiators, ensuring long-term reliability and minimal downtime in an industrial setting.
Feature: Heavy-duty steel frame, wear-resistant components in high-impact areas, and hardened cutting tools.

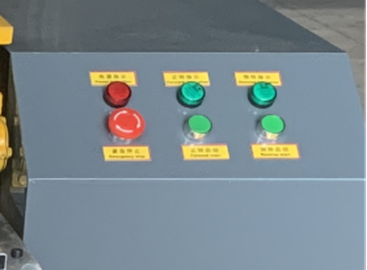

5.User-Friendly PLC Control System
Benefit: Simplifies operation and monitoring. Allows for easy start-up, shutdown, and adjustment of processes, reducing the need for highly specialized operators.
Feature: Centralized control panel with a PLC interface, providing operational status, basic diagnostics, and control over the conveyor and processing units.
6.Safe and Compliant Operation
Benefit: Protects operators with integrated safety guards, emergency stops, and enclosed moving parts, ensuring a safe working environment that complies with EU regulations.
Feature: Designed in accordance with CE machinery safety standards, featuring protective covers, emergency stop circuits, and clear safety signage.

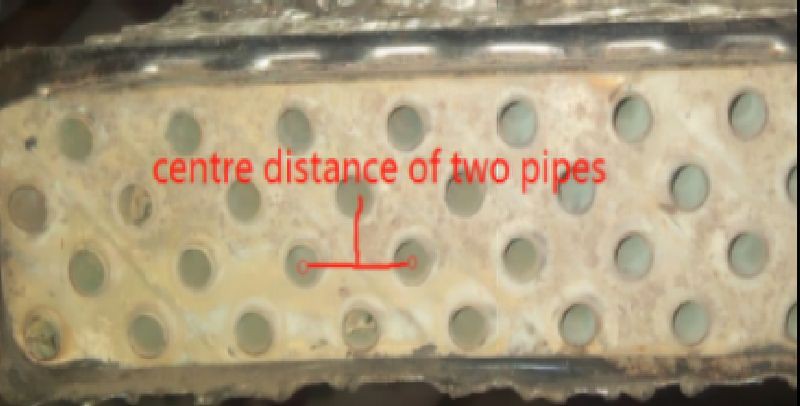

On the machine, there has three areas in working panels. They can process the radiator of two pipes center distance is 19mm/21mm/25mm. The panel size can be customized under the hole panels width no change. Such as make three panels become two panels.
A: The Panel details of 25mm:
1.the maximum pipe quantity is 14 pieces for each radiators processing.
2.The width of 25mm panel is 350mm
3.The height of 25mm panel is 60mm
B: The Panel details of 21mm:
1.can process the maximum pipe quantity is 10 pieces for each radiators processing..
2.The width of 21mm panel is 210mm
3.The height of 21mm panel is 40mm
C: The Panel details of 19mm:
1.can process the maximum pipe quantity is 9 pieces for each radiators processing..
2.The width of 19mm panel is 180mm
3.The height of 19mm panel is 40mm

This Scrap Radiator Recycling Machine is specifically designed for businesses that handle:

End-of-Life Vehicle (ELV) Dismantling: Processing radiators and condensers from scrapped cars and trucks.

HVAC & Refrigeration Scrap: Recycling air conditioner coils, condenser units, and heat exchangers.

Metal Recycling Yards: Adding value to mixed radiator scrap by separating metals in-house.

Radiator Repair Shops: Managing core returns and scrap generated from repair operations.
