Product Introduction

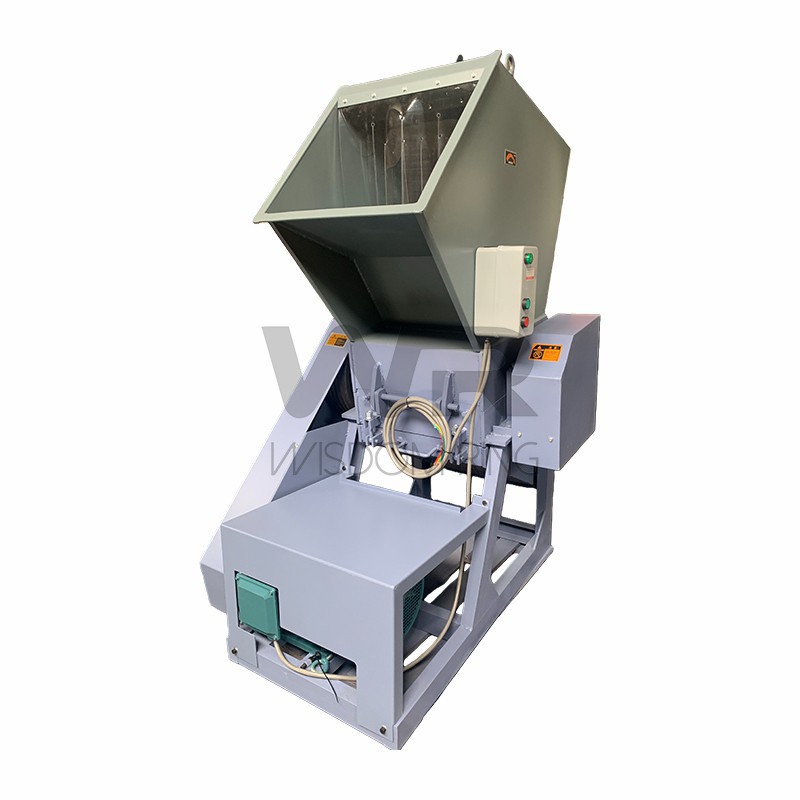

Waste Plastic Crusher are mainly used for crushing various thermoplastics and rubbers, such as plastic pipes, rods, filaments, films, and waste rubber products. The crushed materials can be directly used for extrusion and injection molding. This crusher has advantages such as large crushing capacity, high output, and stable performance. Various models are available to meet user needs; large-diameter heavy-duty crushers can be used for crushing large hollow containers, bulky materials, and sheets.
Product Parameter
|
Model |
W-BL500 |
W-BL600 |
W-BL700 |
W-BL800 |
W-BL1000 |
|
Crusher Width (mm) |
500 |
600 |
650 |
800 |
1000 |
|
Crusher working diameter (mm) |
330 |
380 |
500 |
420 |
420 |
|
Rotary blades quantity (PC) |
6 |
6 |
6 |
6 |
6 |
|
Fixed blades quantity (PC) |
4 |
4 |
4 |
4 |
4 |
|
Feeding hole height (mm) |
1320 |
1450 |
1780 |
1700 |
1700 |
|
Feeding hole size (mm) |
500*430 |
600*450 |
650*530 |
800*480 |
1000*480 |
|
Main axis diameter (mm) |
90 |
90 |
110 |
110 |
110 |
|
Main axis rotary speed (r/min) |
500 |
500 |
495 |
480 |
480 |
|
Power (kw) |
11 |
15 |
18.5 |
22 |
30 |
|
Crushing process capacity (kg/h) |
300~500 |
400~650 |
450~800 |
550~1000 |
700~1200 |
|
Measurement (mm) |
1370*950*1720 |
1520*1050*1750 |
1750*1100*2300 |
1700*1350*2200 |
1750*1600*2200 |
|
Weight (kg) |
600 |
780 |
1120 |
1400 |
1700 |
Product Features
1. Strong structure, easy to operate, low electricity consumption & durable.
2. Uses high quality steel material especially for making knives of the crushers, the machine stands long use under severe and continuous service conditions.
3. The blades can be ground for many times and can be used repeatedly; Blades base structure is stable and durable.
4. Special design for plastic bottles, make the bottles in the compressed state for crushing, then greatly improve the crushing capacity.
5. Full automatic, without the need for manual feeding/pressing material.
6. Water can be added during crushing, to increase the service life of the blade, and the bottle pieces can be cleaned preliminary.
7. Has protection system with the power supply to ensure the equipment safe.
8. Easy to clean and maintain, the hopper, crusher room, blades and screen can be removed and mounted easily.
Applications
Below is a guide to common material types and their typical product applications suitable for our Waste Plastic Crusher:
- PVC (Polyvinyl Chloride): Pipes, window profiles, fittings, sheets, and cables.
- HDPE (High-Density Polyethylene): Flange barrels, crates, containers, bottles for detergents, and piping.
- ABS (Acrylonitrile Butadiene Styrene): Automotive parts, electronic housings, consumer appliance components, and Lego bricks.
- PS (Polystyrene): Disposable food containers, packaging foam (EPS), CD cases, and insulation panels.
- PP (Polypropylene): Plastic trays, plastic baskets, automotive bumpers, food containers, and woven bags.
- PC (Polycarbonate): Car bumpers, eyewear lenses, electronic displays, and safety glazing.
- PET (Polyethylene Terephthalate): Plastic bottles for beverages, food packaging trays, and synthetic fibers.
- PE (Polyethylene): Hot melting materials, plastic films, shopping bags, and various types of containers and lids.
Product Details
Why Choose Us: Your Trusted Partner in Recycling Machinery
1.We are the source manufacturer of WASTE RECYCLE MACHINE in China.We can provide you with more cost-effective machines.
2.If the machine description does not match the actual machine, we can accept the refund.
3. One-year warranty,excludes consumables and man-made damage,accessories will be replaced free of charge.
4. Quality is our culture is our company slogan.
5. We can accept color and logo customization.
6. Lifetime online technical support.
Frequently Asked Questions
Q1:What information shall I provide when I request for quotation?
A:Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
Q2: What kind of products do you offer?
A:We have four main categories of products, cable recycling machine ,radiator recycling machine ,motor recycling machine , plastic crusher
Q3:What are the applications of these products?
A:Our Waste Plastic Crusher are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
Q4:Do you support product customization?
A:Yes, not only we provide customized service but also provide solutions to our customer.
