Chip Briquette Machine

Pressing copper cake about 120-150kg/hour, pressed aluminum cake about 100-120kg/hour.
Equipped with a screen to control the feeding speed of the machine, Power consumption of 1.5degrees/hour. One minute can be pressed 2 cakes.

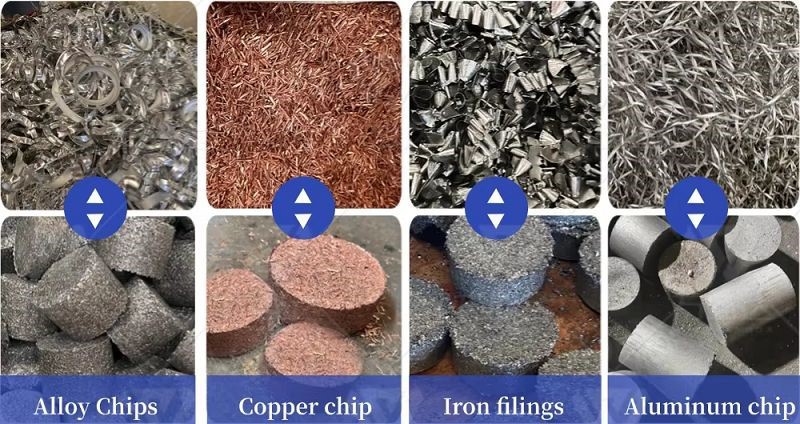

Compress a variety of metal scrap materials, including aluminum, copper, iron, and steel.
High compression ratio, which means that it can create briquettes that are very dense and strong Makes the briquettes easier to handle and transport, and it also increases their value.

Send Inquiry

Description

Product Introduction

The Chip Briquette Machine is a compact, powerful solution designed to transform the handling and economics of metal swarf generated in machining operations. This specialized machine efficiently presses loose, bulky copper, aluminum, iron, and steel chips into solid, uniform round briquettes with a standard diameter of 70 mm.

By significantly increasing material density, the system dramatically reduces storage volume, cuts transportation costs, and creates a cleaner, more manageable feedstock for foundries or smelters. A key integrated feature is its automatic cutting oil recovery system, which extracts valuable lubricants during compaction. Offering high efficiency in a small footprint, the Chip Briquette Machine is the ideal choice for machine shops, casting plants, and manufacturers seeking to streamline operations, recover resources, and boost profitability.

Product Parameter

Model	W-X500
Maximum pressure	500KN
Hopper inlet size	520*450MM
Hopper inlet height	780mm
Hopper capacity	50L
Raw material feeding method	spiral
Raw material compression method	Hydraulic cylinder
Dimensions after compression	Φ70*10-50mm
Machine Motor	3kw
Machine weight	560kg
Machine size	800×1200×950mm
application	Aluminum, iron, copper, stainless steel

Product Structure

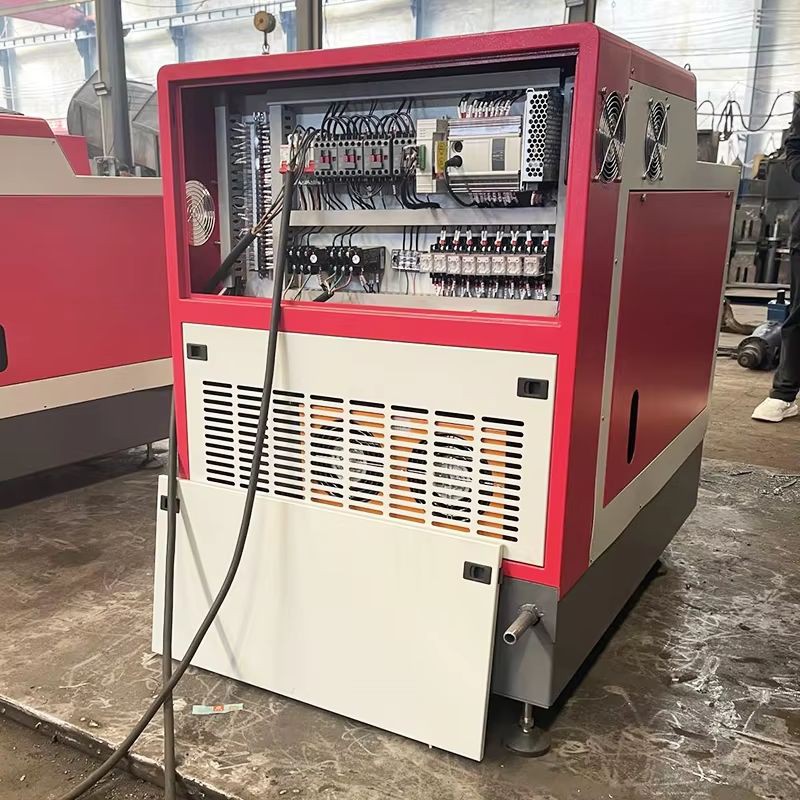

PLC automatic control:Automated programs make operation easier.

Direct operation is performed through the touch screen, and emergency stop can be performed with one button, making the operation more intuitive and convenient.

Screw feeder:Not easy to arch, not easy to punch the material. Set the time according to the set amount each time to control the feeding amount. The feeding is uniform and the material winding problem is improved.

Electric control cabinet cooler:Chip Briquette Machine Coolant recovery plays an important role in saving costs, reducing environmental pollution and realizing resource reuse, and is an indispensable part of modern industrial production.
