Product Introduction

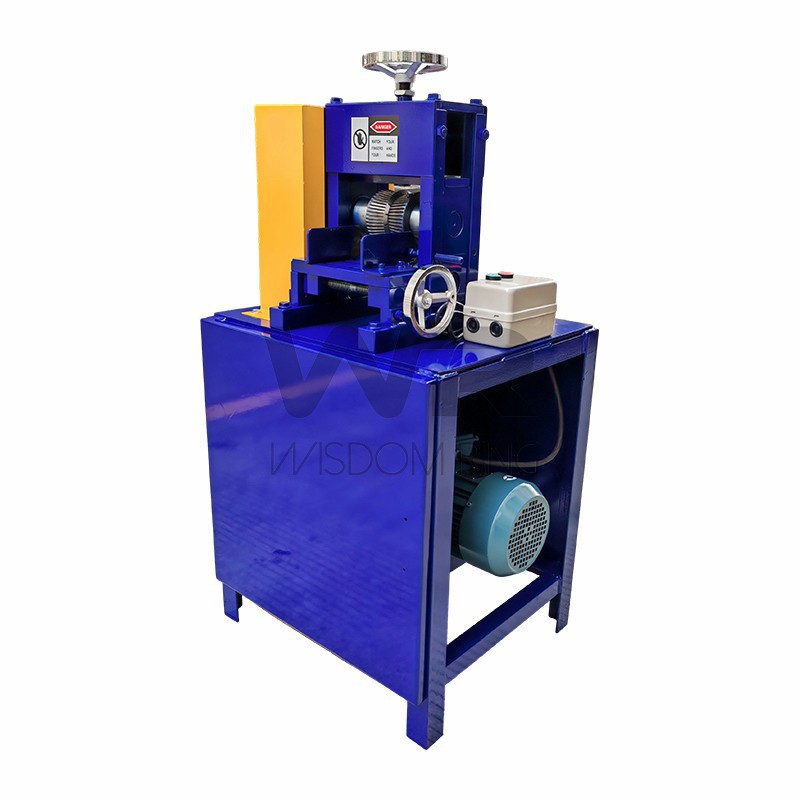

The automatic cable stripping machine is designed for processing large-diameter scrap wires and cables,efficiently separating copper cores from their plastic or rubber insulation.Its standout feature is the exceptional capacity for handling oversized cables-making it the ideal solution for stripping submarine cables,high-voltage lines,armored cables,thick Ethernet cables,and copper-aluminum composite cables.Operating in a fully automatic cutting and stripping mode,it delivers high efficiency and consistent performance in recycling bulk wire scrap.
Product Parameter
|
Model |
W-120M |
|
Power |
3kw |
|
The machine size |
740*640*1370cm |
|
Process capacity |
1000~3000kg/day |
|
Weight |
240kg |
|
Process range |
10~120mm |
|
Blades quantity |
2 pieces |
|
Axis quantity |
2 pieces |
|
Package way |
Plywood case |
|
Delivery way |
By sea |
Processing Effect
How To Operate The W-120M Automatic Cable Stripping Machine?
Step 1–Machine Setup
Switch on the machine and adjust the stripping diameter according to the cable size to ensure proper cutting and peeling performance.
Step 2–Cable Feeding
Insert the cable into the feeding inlet.Once positioned correctly,the machine will begin stripping automatically.
Step 3–Material Separation
After processing,the copper conductor and insulation will be cleanly separated and collected.
Product Structure
- Compact structure with multiple feeding holes,suitable for processing cables of different diameters.
- Upper and lower blade system with adjustable handle ensures precise and efficient stripping.
- Automatic cable stripping machine Powered by a durable copper motor and equipped with heavy-duty wheels for easy operation and mobility.
Adjustment hand wheel
The hand wheel adjusts the direct distance between the upper blade and the lower blade to separate the wire sheath and wire core into two parts.
Alloy steel knife
The steel knife is made of manganese steel,which is sharp,wear-resistant,not easily damaged,and has a long service life.
Inverted switch
Using a reverse switch,the forward and reverse rotation of wire stripping is adjustable,realizing one-button control,simple operation and easy to use.
Copper wire motor
Using copper wire motor,the output power is stable,strong,low energy consumption and long service life.
Frequently Asked Questions
Q: What cable sizes can the W-120M handle?
A: The automatic cable stripping machine is built to handle a wide range of industrial cables,including armored and stranded types.It can strip wires with diameters from 10mm up to 120mm(including insulation),making it suitable for heavy-duty applications.
Q: Is the W-120M easy to operate?Do I need training?
A: Yes.The W-120M is user-friendly and requires no specialized training.Simply adjust the blades to match the cable diameter,insert the wire,and the machine will strip it automatically with precision.
