Product Introduction
This automatic copper wire stripper machine scrap efficiently handles multicore and flat cables, keeping them perfectly aligned while stripping tough casings with precision. It automates separation of complex wires, converting mixed scrap into high-purity copper, boosting throughput and eliminating manual sorting bottlenecks.
Product Parameter
|
Model |
W-KOB |
|
Wire Diameter Range |
1.5mm- 45mm |
|
Power |
2.2KW |
|
Voltage |
220V/230V/240V/110V(optional) |
|
Hole |
21 |
|
Blades number |
20 |
|
Machine Dimensions |
760*640*920mm |
|
Net Weight |
135kg |
Product Features
The automatic copper wire stripper machine scrap features an integrated wire straightening module with adjustable rollers, ensuring coiled or kinked wire feeds smoothly into the cutting gears for precise, off-center-free cuts. An electromagnetic safety interlock instantly interrupts the circuit if the cover is opened during operation, protecting the operator. Meanwhile, the precision depth-locking mechanism secures blade adjustments, maintaining consistent cut depth across long production runs. Together, these innovations maximize accuracy, safety, and reliability in high-volume wire stripping applications.
Applications
Ideal for heavy-duty cable recovery, this machine processes large-diameter locomotive wires, armored ESP cables, and high-flex stage power lines. It effortlessly strips thick insulation, lead or steel armor, and damaged rubber sheaths, enabling safe, efficient copper reclamation from railway, oil & gas, and entertainment applications.
Product Structure

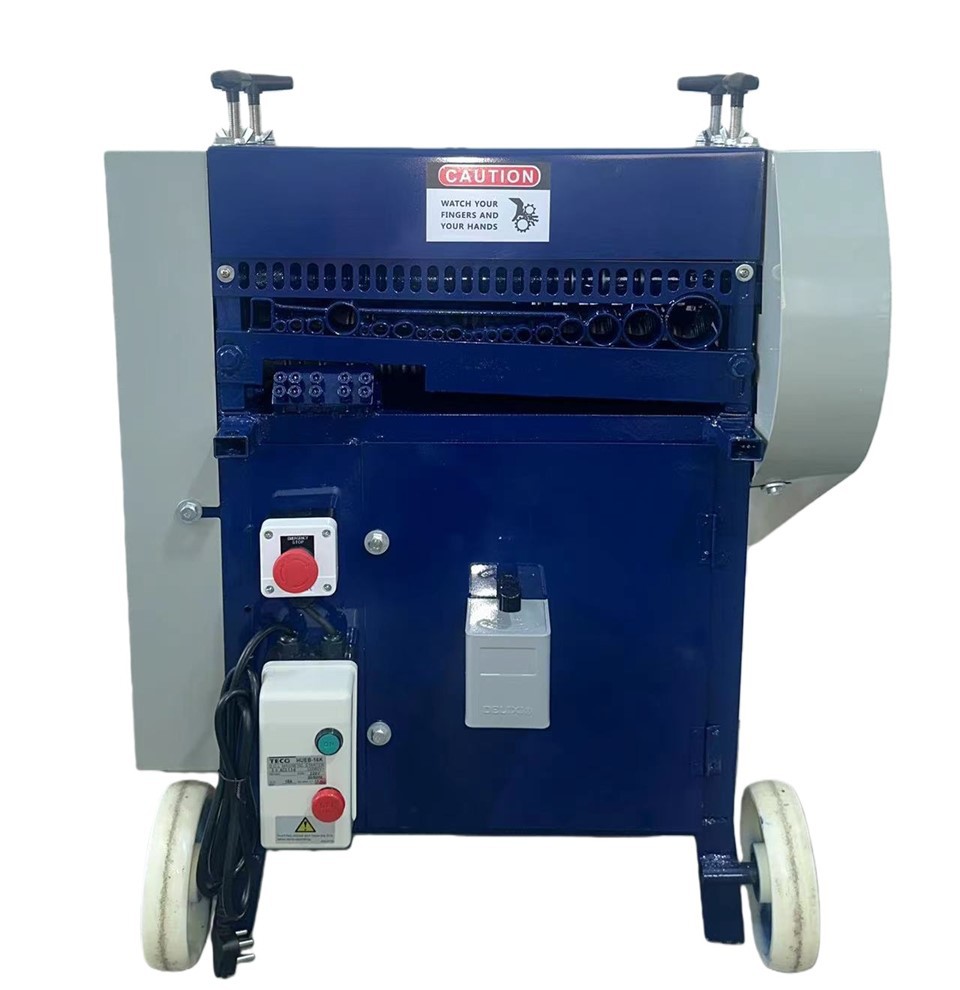

1.Versatile Feeding and Cutting System
The automatic copper wire stripper machine scrap is designed with a row of multiple feeding holes in various sizes to accommodate different cable diameters. It also features specialized flat blades specifically engineered for processing double wires, ensuring adaptability for different recycling needs.

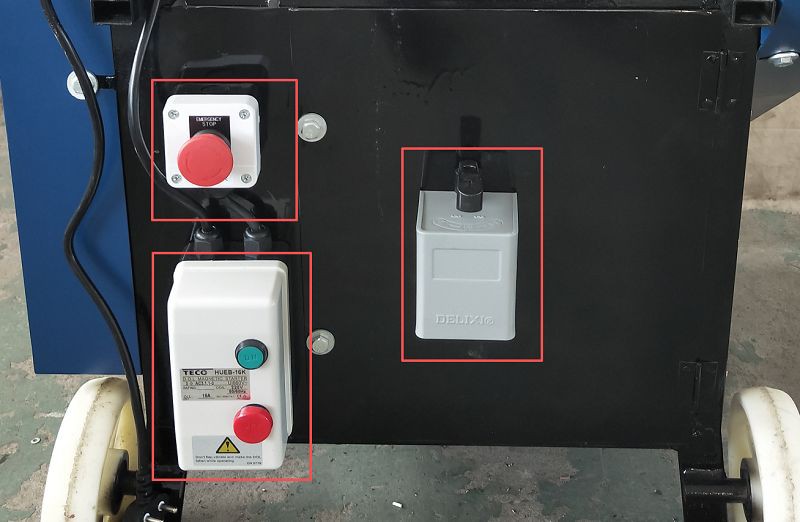

2.Safety and Control Features
To ensure operator safety and precise control, the unit is equipped with a prominent emergency stop button, a solenoid valve switch, and an inverted switch. A sturdy top cover and caution signage further protect the user from moving parts.

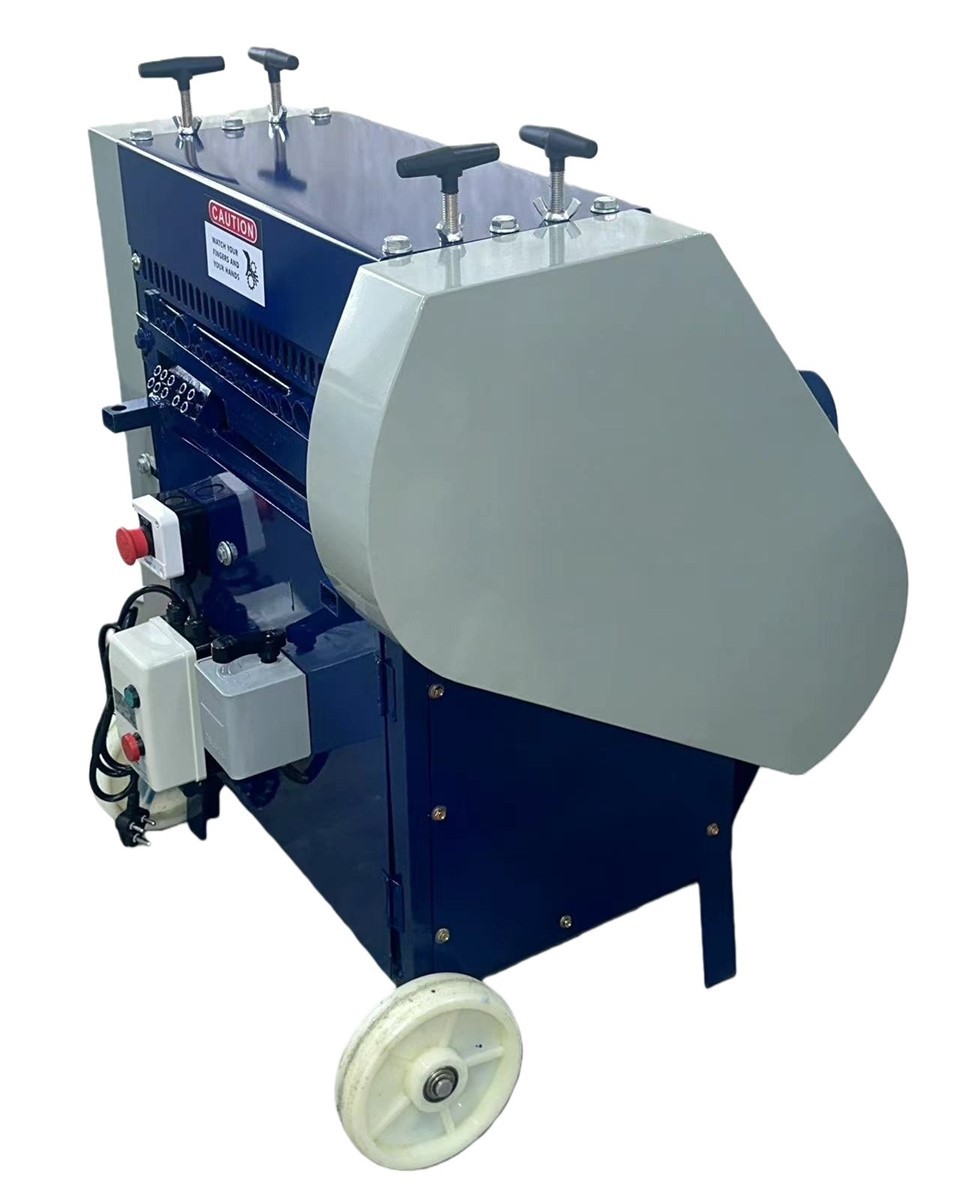

3.Mobility and Maintenance Accessibility
The structure is built for portability and ease of maintenance, featuring large wheels at the base and handles on top for easy maneuvering. It also includes front and back doors, providing convenient access to the internal mechanism for repairs or cleaning.
Packing And Delivery
