Product Introduction

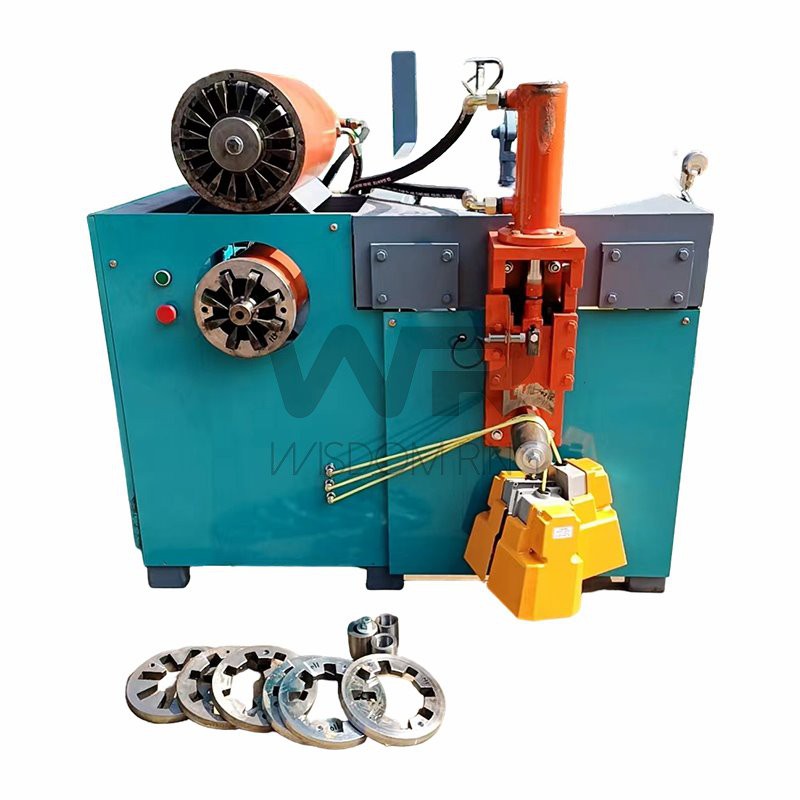

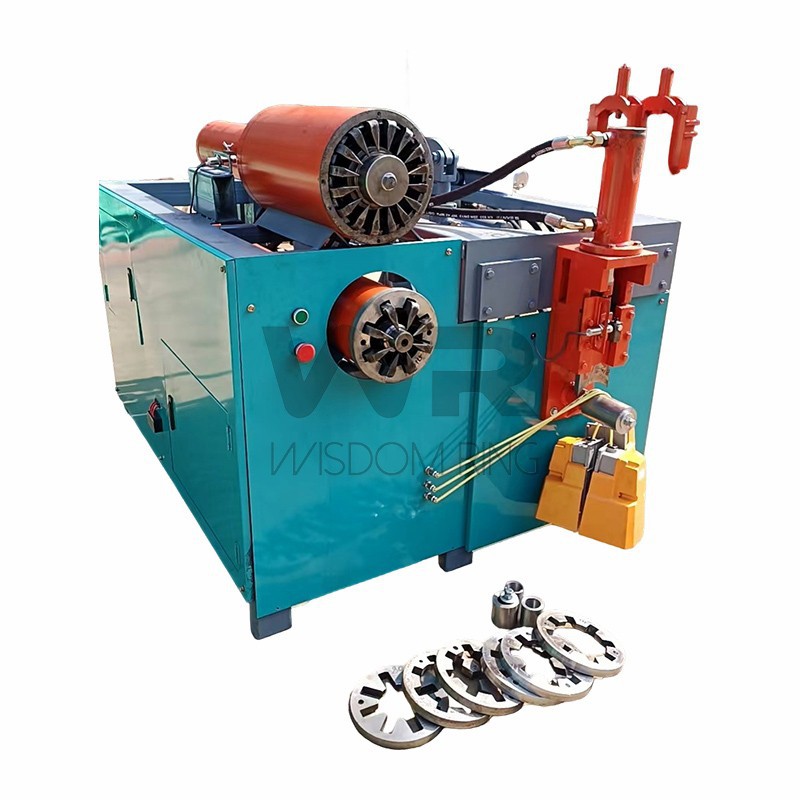

Waste electric motor stator dismantling recycling machine is a multifunctional solution designed for efficient copper removal from scrap motor stators. Equipped with copper cutting, 8-jaw and 16-jaw copper pulling systems, and a heavy-duty hydraulic clamp, the MR-816 can handle a wide range of stator sizes from small to large motors.
Product Specifications
|
Machine Model |
MR-816 |
|
Machine Power |
5.5KW |
|
Machine Size |
1350*1050*1150mm(L*W*H) |
|
Machine Weight |
460Kg |
|
Cutting-part processing range |
stator inner diameter of 4 cm or more and a power of 7.5 kW or less. |
|
Pulling part processing range |
Stator inner diameter greater than 4 cm, coil outer diameter not exceeding 19cm |
|
Warranty |
12 months |
Machine Structure
Function 1: Copper cutter
(Suitable for stator inner diameter of 4 cm or more, and for cutting copper wire in motors of 7.5 kW and below);
Function 2: Pulling part 8-claws copper
(Suitable for stator inner diameter of 4 cm or more, and coil outer diameter of 12.5 cm or less (jaw opening and closing 4-12.5 cm));
Function 3: Pulling part 16-claws copper
(Suitable for stator inner diameter of 10 cm or more, and coil outer diameter of 19 cm or less (jaw opening and closing 10-19 cm);
Function 4: Hydraulic clamp with single pull and lifting mechanism
(Suitable for stator inner diameter of 7 cm or more, and coil outer diameter not exceeding 40cm)
Materials Processed by MR-816
Scrap Motor Stators – including household, industrial, and automotive motors
Copper Coils – stator winding copper
Packaging & Shipping
Inner Protection: waste electric motor stator dismantling recycling machine wrapped in protective plastic film to prevent dust and moisture.
Outer Protection: plywood case
Shipping Options: Available by sea, by air, or door-to-door delivery
Frequently Asked Questions.
Q1: What is the maximum stator size it can handle?
A: The machine supports stator inner diameters from 4 cm up to 10+ cm, and coil outer diameters up to 40 cm.
Q2: What materials can it process?
A: Primarily copper coils, including stator windings and mixed metal coils with mainly copper. Not suitable for pure aluminum wires or hard metal blocks..
Q3: What's for waste electric motor stator dismantling recycling machine Warranty & Support?
A: Warranty: 1 year for all major components.
After-Sales Service: 24-hour support to ensure smooth operation and quick problem resolution.
