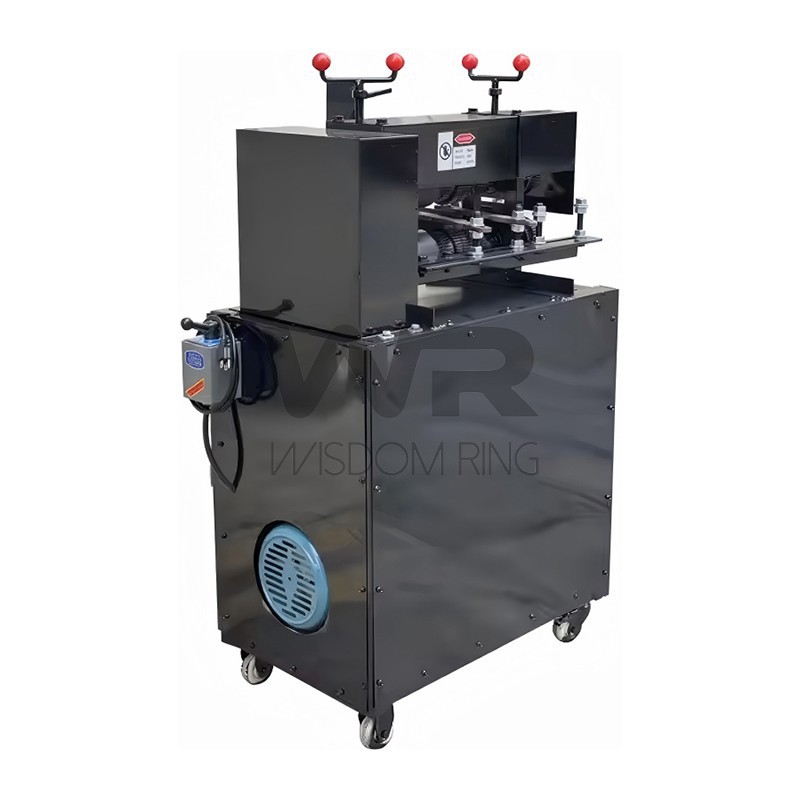

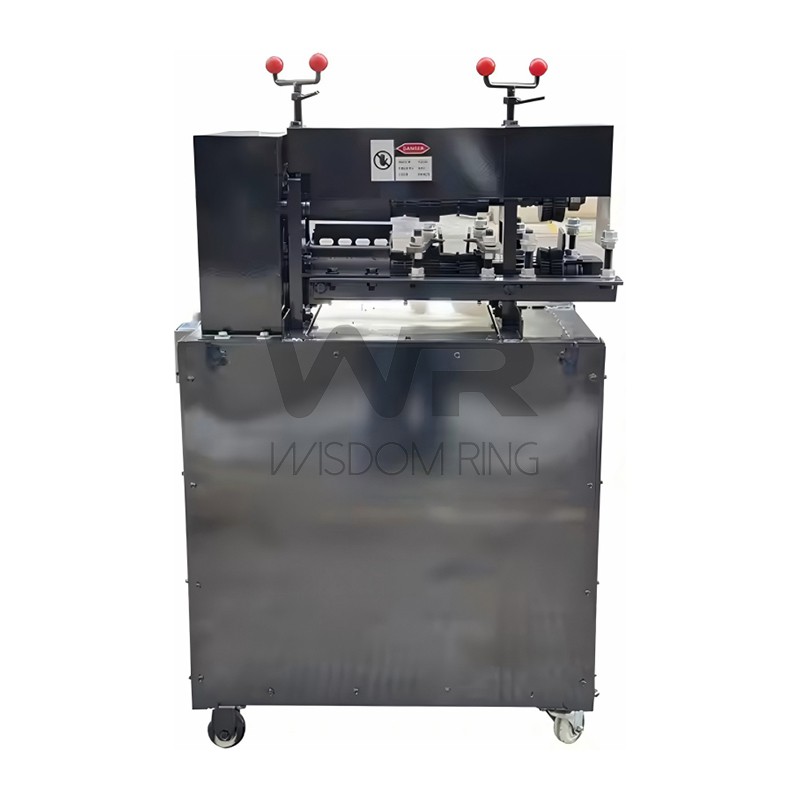

Product Overview
The coax cable stripping machine is engineered for recyclers and workshops that demand versatility, efficiency, and robust performance in a single unit. Designed to handle an exceptionally wide range of wire types and diameters-from fine 1.5 mm strands to heavy-duty 98 mm armored cables-this machine eliminates the need for multiple stripping tools and streamlines your scrap processing workflow. Its intelligent double-cut system and fully adjustable components deliver clean, consistent copper recovery in a single pass, saving both time and labor while maximizing material yield.
Whether you're processing everyday electrical cables, tough rubber-insulated wires, or steel-braided lines, the W-918-C-1 is built to adapt-and built to last.
Key Features
1. Fully Adjustable Operation
- Upper shaft height can be finely adjusted to accommodate different cable thicknesses.
- Speed and roller tension are customizable to suit various insulation materials-from soft plastic to tough rubber.

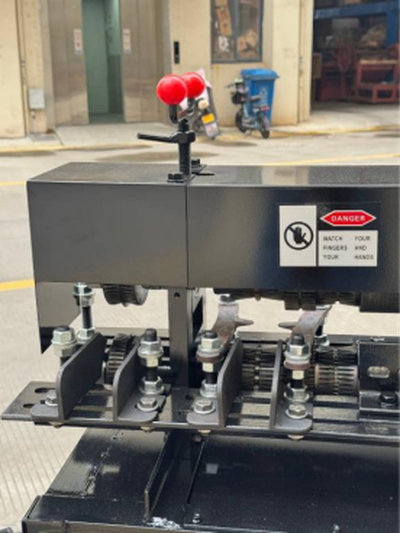

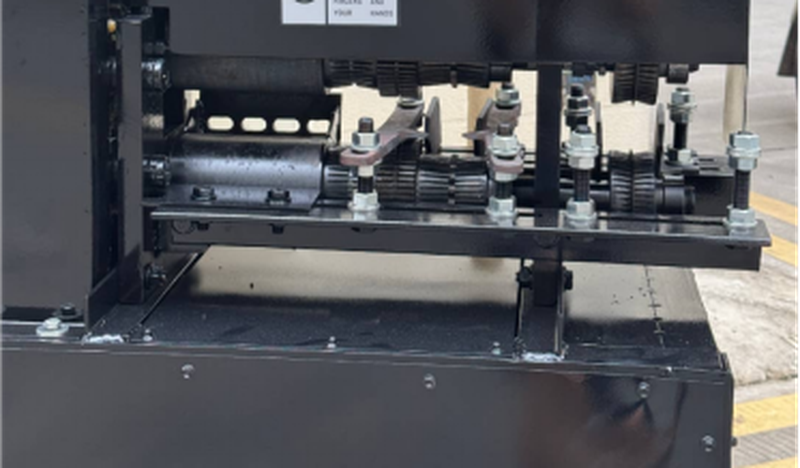

2. Efficient Double-Cut Blade System
- Equipped with two stick blades on drive gears and two circular blades on top and bottom shafts.
- Ensures a complete, clean cut through insulation in one pass, reducing rework and improving recovery rates.
3. User-Friendly, Manual-Feed Design
- Simple operation: insert cable into the appropriately sized hole, and coax cable stripping machine automatically grips and strips it.
- Stripped wire exits ready for easy manual separation of copper from insulation-no complex mechanisms or training needed.

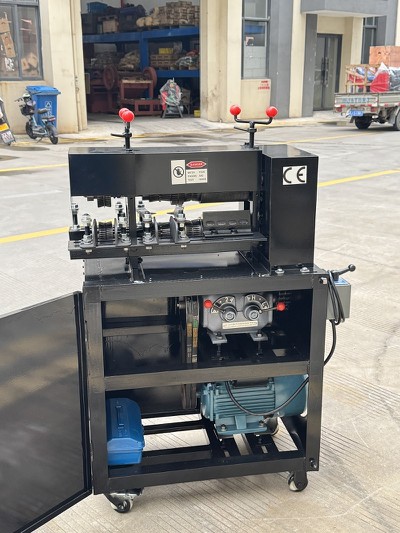

4. Rugged & Reliable Construction
- Powered by a 5.5 HP (4 kW) reversible three-phase motor, built for continuous, heavy-duty operation.
- High-quality gears, sealed bearings, and a reinforced steel frame ensure stability and durability.
Technical Specifications
|
Model |
918-C-1 |
|
Stripping Range |
1.5–98 mm (14 AWG to approx. 3.5 inches) |
|
Motor |
5.5 HP, 3-Phase, Reversible |
|
Power Supply |
208–240 VAC, 60 Hz, 15 A |
|
Stripping Speed |
60–300 feet per minute |
|
Dimensions |
32″ × 20″ × 48″ |
|
Warranty |
1 Year |
Applications
Small to Medium Scrap Yards
Electrical Contractors
Demolition & Salvage Teams
E-Waste & Cable Recyclers
Why Choose Our W-918-C-1 Coax Cable Stripping Machine?
- All-in-One Versatility – From thin wires to armored cables, coax cable stripping machine does it all.
- Higher Recovery Rates – Clean cuts preserve copper integrity and maximize salable weight.
- Reduced Downtime – Quick adjustments mean less time switching between jobs.
- Built for the Long Haul – Dependable three-phase motor and solid construction ensure years of service.
- Easy to Operate – No specialized training required; get started in minutes.
